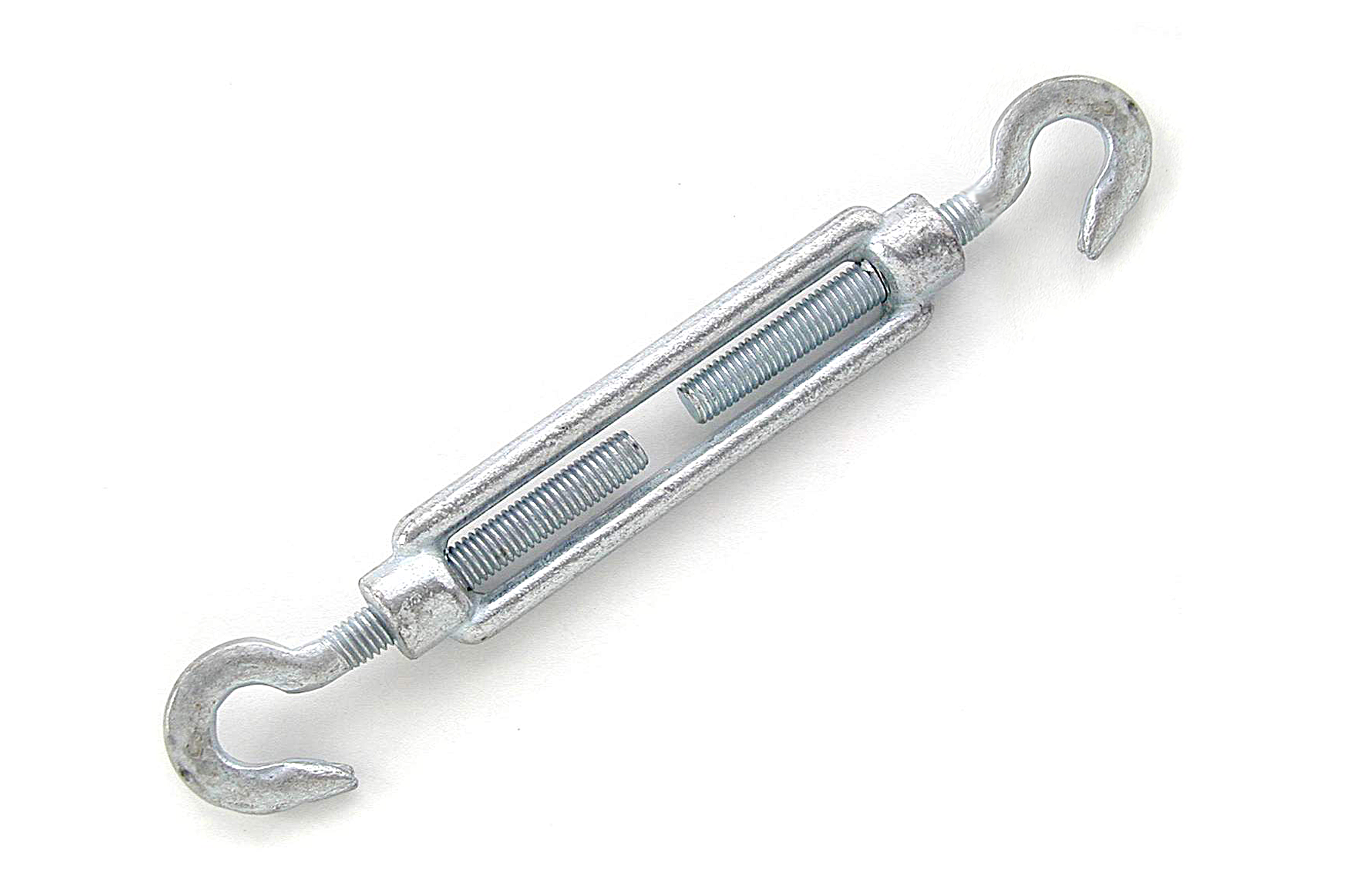

Spannschloss in verzinkter Ausführung, beiderseits mit Haken.
:strip_icc():strip_exif()/sortiment/030_seiltechnik/spannschloesser/spannschloss-2727z/00136_spannschloss-2727z_img-01.png)

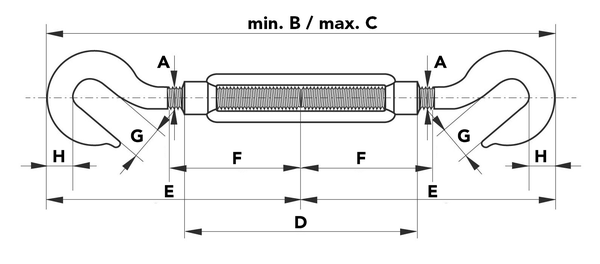

:strip_icc():strip_exif()/sortiment/030_seiltechnik/spannschloesser/spannschloss-2727z/00136_spannschloss-2727z_img-mass.png)
| Gewinde | Länge min. | Länge max. | Spannweg | Belastung max. | A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | kg | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 00136 | M6 | 184 | 270 | 86 | 75 | 6.0 | 184.0 | 270.0 | 110.0 | 92.0 | 55.0 | 8.0 | 15.0 |
| 00137 | M8 | 200 | 280 | 80 | 165 | 8.0 | 200.0 | 280.0 | 110.0 | 100.0 | 57.0 | 10.5 | 15.0 |
| 00138 | M12 | 260 | 343 | 83 | 320 | 12.0 | 260.0 | 343.0 | 125.0 | 130.0 | 70.0 | 16.0 | 13.0 |
| 00139 | M14 | 278 | 368 | 90 | 420 | 14.0 | 278.0 | 368.0 | 140.0 | 139.0 | 75.0 | 18.0 | 15.0 |
| 00140 | M16 | 322 | 438 | 116 | 530 | 16.0 | 322.0 | 438.0 | 170.0 | 161.0 | 88.0 | 20.0 | 17.0 |
| 00141 | M20 | 382 | 514 | 132 | 730 | 20.0 | 382.0 | 514.0 | 200.0 | 191.0 | 105.0 | 21.0 | 21.0 |
| 00142 | M22 | 456 | 601 | 145 | 1120 | 22.0 | 456.0 | 601.0 | 220.0 | 228.0 | 118.0 | 24.0 | 28.0 |
| 00143 | M24 | 496 | 673 | 177 | 1550 | 24.0 | 496.0 | 673.0 | 255.0 | 248.0 | 135.0 | 26.0 | 33.0 |
| 00144 | M30 | 550 | 715 | 165 | 2240 | 30.0 | 550.0 | 715.0 | 255.0 | 275.0 | 135.0 | 34.0 | 35.0 |
| 00145 | M36 | 640 | 825 | 185 | 3530 | 36.0 | 640.0 | 825.0 | 295.0 | 320.0 | 158.0 | 46.0 | 45.0 |
| 03918 | M10 | 234 | 230 | 89 | 235 | 10.0 | 234.0 | 323.0 | 125.0 | 117.0 | 68.0 | 13.0 | 11.0 |
