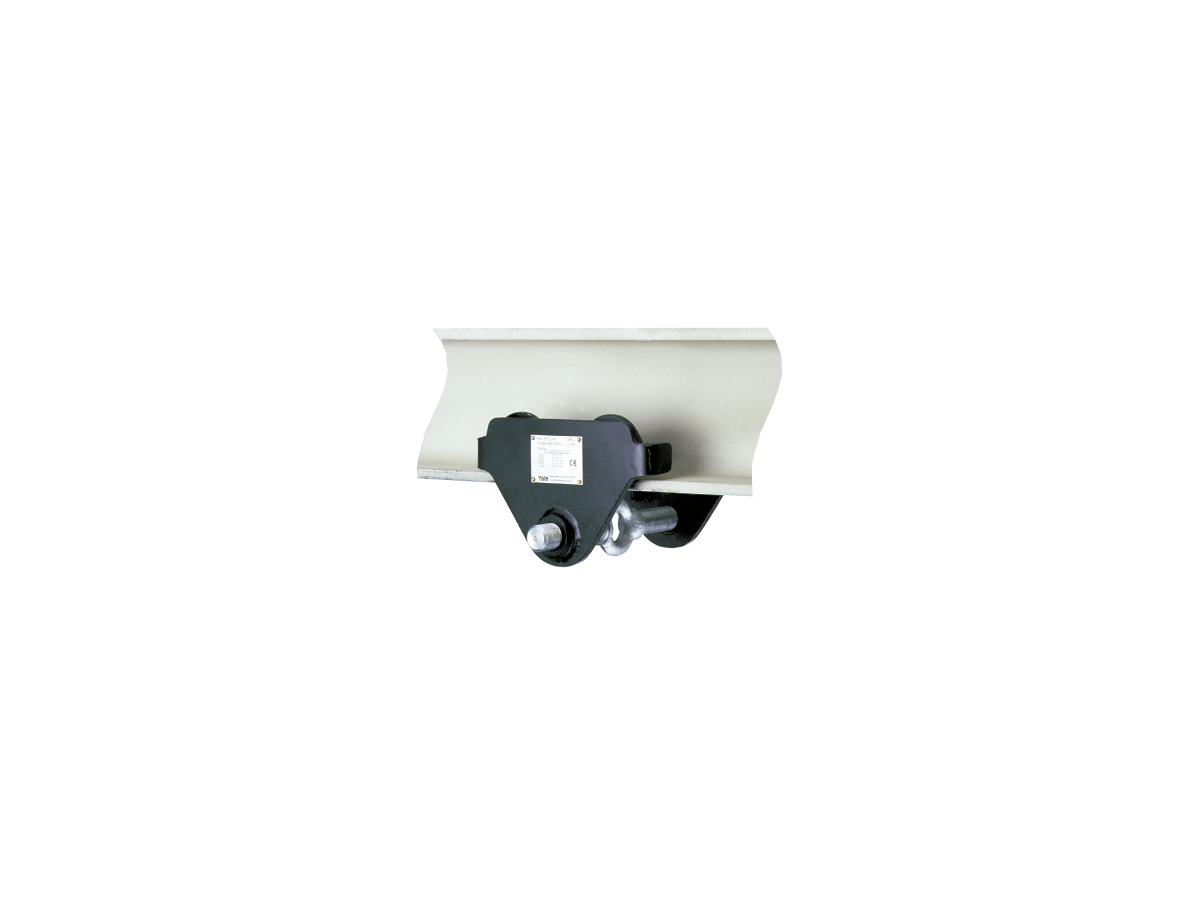

Ideal zum leichten Verfahren und genauen Positionieren kleinerer Lasten in Verbindung mit einem Hand- oder Elektrokettenzug.
:strip_icc():strip_exif()/sortiment/040_lastaufnahmemittel/60_rollfahrwerke/rollfahrwerk-htp/13677_rollfahrwerk-htp_img-neu.png)
Optional
:strip_icc():strip_exif()/sortiment/040_lastaufnahmemittel/60_rollfahrwerke/rollfahrwerk-htp/13677_rollfahrwerk-htp_img-mass-01.png)

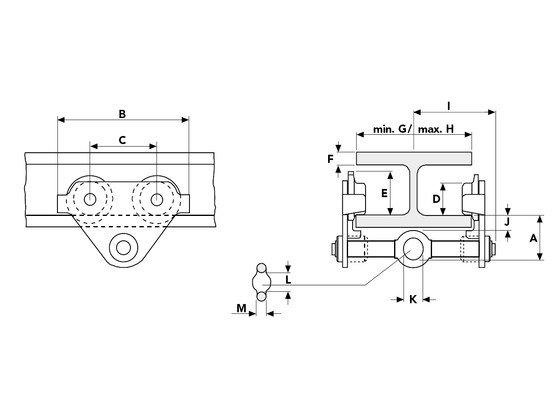

| Tragfähigkeit | Trägerflanschbreite min. | Trägerflanschbreite max. | A | B | C | D | E | F | G | H | I | J | K | L | M | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| 13677-0500A | 0.5 | 50 | 220 | 77.0 | 260.0 | 130.0 | 60.0 | 71.5 | 25.0 | 50.0 | 220.0 | 146.0 | 30.5 | 25.0 | 30.0 | 16.0 |
| 13677-0500B | 0.5 | 160 | 300 | 92.0 | 260.0 | 130.0 | 60.0 | 71.5 | 40.0 | 160.0 | 300.0 | 187.0 | 45.5 | 25.0 | 30.0 | 16.0 |
| 13677-1000A | 1 | 50 | 220 | 82.5 | 260.0 | 130.0 | 60.0 | 71.5 | 25.0 | 50.0 | 220.0 | 150.0 | 30.5 | 30.0 | 35.0 | 17.0 |
| 13677-1000B | 1 | 160 | 300 | 97.5 | 260.0 | 130.0 | 60.0 | 71.5 | 40.0 | 160.0 | 300.0 | 150.0 | 45.5 | 30.0 | 35.0 | 17.0 |
| 13677-2000A | 2 | 66 | 220 | 98.5 | 310.0 | 150.0 | 80.0 | 95.5 | 25.0 | 66.0 | 220.0 | 155.0 | 30.5 | 40.0 | 47.0 | 22.0 |
| 13677-2000B | 2 | 160 | 300 | 113.5 | 310.0 | 150.0 | 80.0 | 95.5 | 40.0 | 160.0 | 300.0 | 155.0 | 45.5 | 40.0 | 47.0 | 22.0 |
| 13677-3000A | 3 | 74 | 220 | 114.0 | 390.0 | 180.0 | 112.0 | 131.0 | 25.0 | 74.0 | 220.0 | 160.0 | 30.0 | 48.0 | 58.0 | 26.0 |
| 13677-3000B | 3 | 160 | 300 | 129.0 | 390.0 | 180.0 | 112.0 | 131.0 | 40.0 | 160.0 | 300.0 | 160.0 | 45.0 | 48.0 | 58.0 | 26.0 |
| 13677-5000A | 5 | 90 | 220 | 132.5 | 450.0 | 209.0 | 125.0 | 142.5 | 25.0 | 90.0 | 220.0 | 167.5 | 30.0 | 60.0 | 70.0 | 33.0 |
| 13677-5000B | 5 | 180 | 300 | 147.5 | 450.0 | 209.0 | 125.0 | 142.5 | 40.0 | 180.0 | 300.0 | 167.5 | 45.0 | 60.0 | 70.0 | 33.0 |
