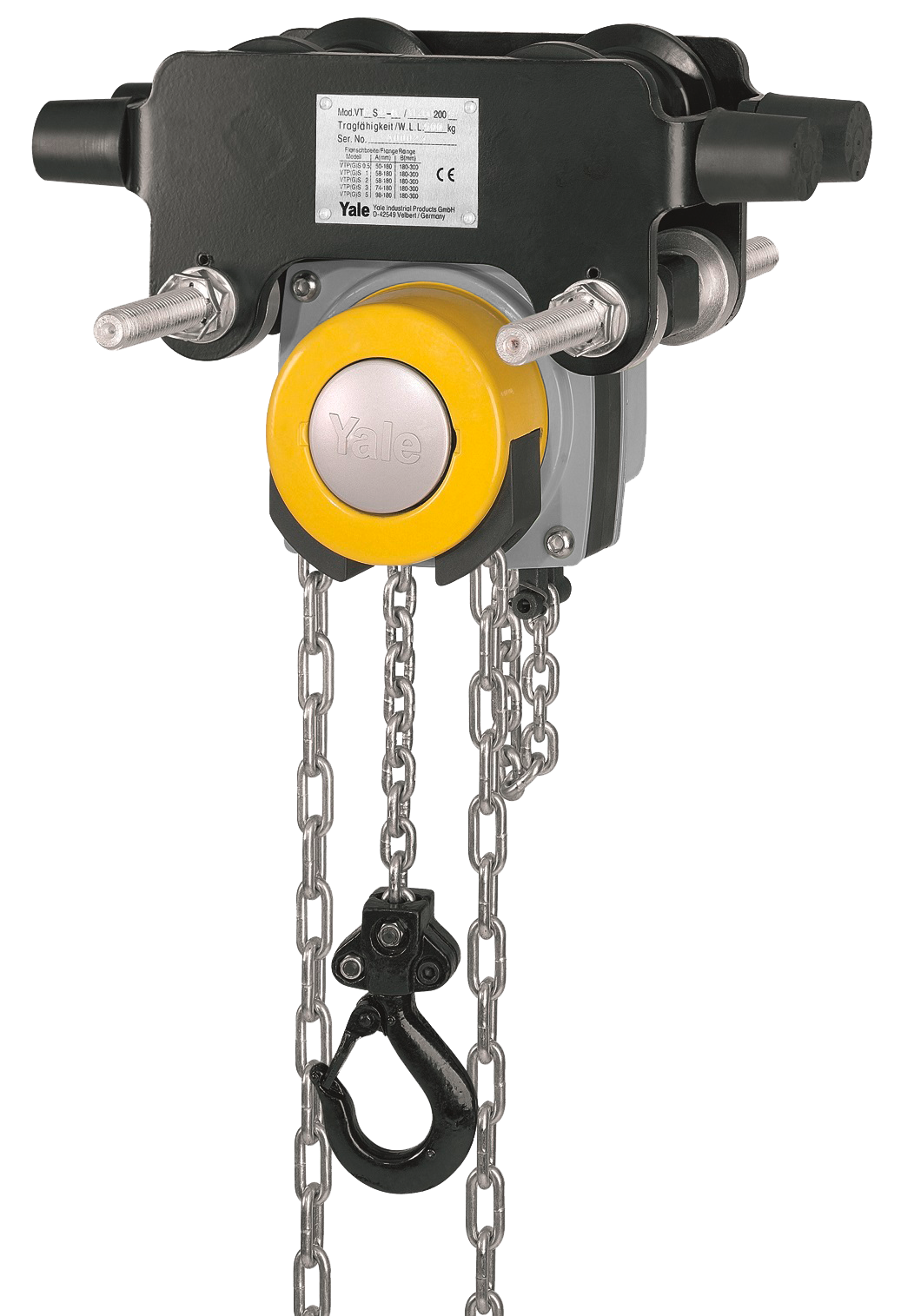

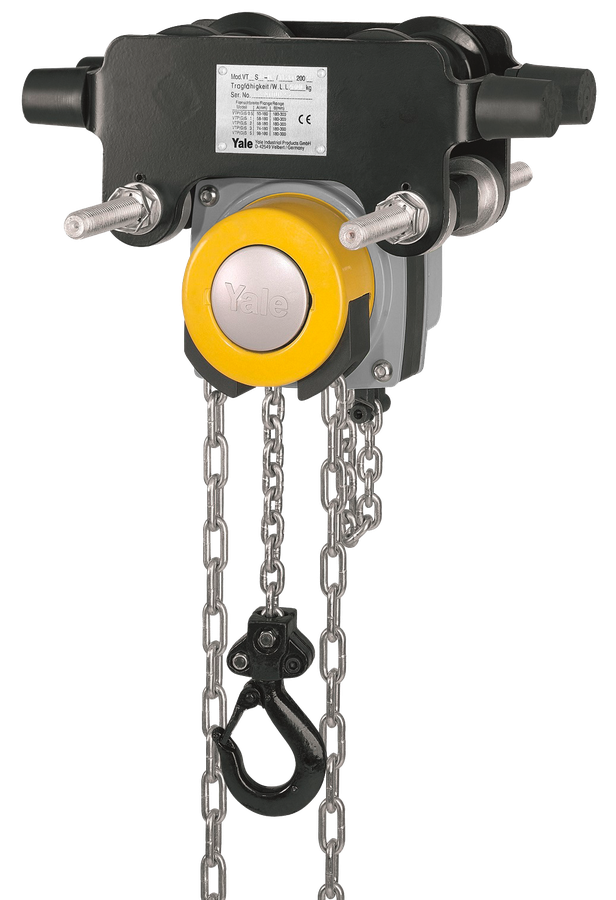

![Handflaschenzug Yalelift ITP 500 kg, Hub 3 m, Ausführung A](/thumbor/XAma31a6XCu1gqca0s7Qr39E4RU=/fit-in/300x200/filters:cachevalid(2018-06-07T07:59:37.332771):strip_icc():strip_exif()/sortiment/050_hubgeraete/10_hubgeraete-manuell/10_handflaschenzuege/handflaschenzug-yalelift-itp/21835_handflaschenzug-yalelift-itp_img-01.png)
CHF
/ Stk
1'038.45
Kombination des Yalelift 360 mit einem sehr niedrig bauendem Rollfahrwerk. Vielfältig einsetzbar dank 360°-drehbarer Handkettenführung.

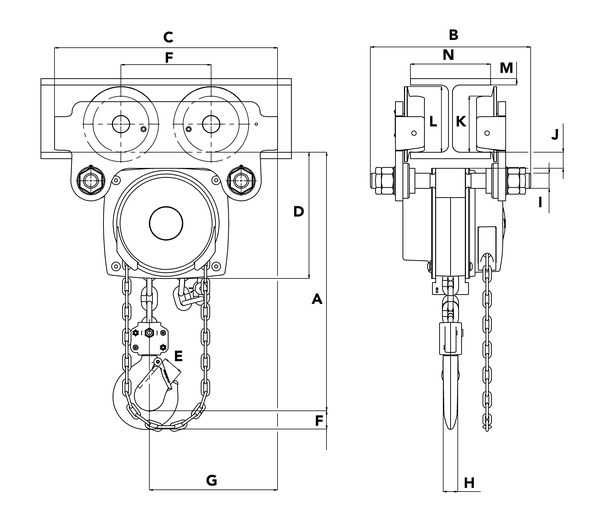

Tragfähigkeit | A | B | C | D | E | F | G | H | I | J | K | L | M | Nmin | Nmax | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
21834-0500A | 0.5 | 245.0 | 280.0 | 270.0 | 158.0 | 24.0 | 17.0 | 159.0 | 14.0 | 18.0 | 24.5 | 60.0 | 71.5 | 19.0 | 50 | 180 |
21834-0500B | 0.5 | 245.0 | 400.0 | 270.0 | 158.0 | 24.0 | 17.0 | 159.0 | 14.0 | 18.0 | 24.5 | 60.0 | 71.5 | 19.0 | 180 | 300 |
21834-1000A | 1 | 272.0 | 290.0 | 310.0 | 178.0 | 29.0 | 22.0 | 175.0 | 19.0 | 22.0 | 24.0 | 60.0 | 71.5 | 19.0 | 50 | 180 |
21834-1000B | 1 | 272.0 | 410.0 | 310.0 | 178.0 | 29.0 | 22.0 | 175.0 | 19.0 | 22.0 | 24.0 | 60.0 | 71.5 | 19.0 | 180 | 300 |
21834-2000A | 2 | 323.0 | 305.0 | 360.0 | 205.5 | 35.0 | 30.0 | 207.0 | 22.0 | 27.0 | 23.5 | 80.0 | 95.5 | 19.0 | 58 | 180 |
21834-2000B | 2 | 323.0 | 425.0 | 360.0 | 205.5 | 35.0 | 30.0 | 207.0 | 22.0 | 27.0 | 23.5 | 80.0 | 95.5 | 19.0 | 180 | 300 |
21834-3000A | 3 | 382.0 | 320.0 | 445.0 | 252.0 | 40.0 | 38.0 | 256.0 | 30.0 | 30.0 | 32.0 | 112.0 | 131.0 | 27.0 | 74 | 180 |
21834-3000B | 3 | 382.0 | 440.0 | 445.0 | 252.0 | 40.0 | 38.0 | 256.0 | 30.0 | 30.0 | 32.0 | 112.0 | 131.0 | 27.0 | 180 | 300 |
21834-5000A | 5 | 550.0 | 364.0 | 525.0 | 260.5 | 47.0 | 45.0 | 283.0 | 37.0 | 42.0 | 30.5 | 125.0 | 142.5 | 27.0 | 98 | 180 |
21834-5000B | 5 | 550.0 | 484.0 | 525.0 | 260.5 | 47.0 | 45.0 | 283.0 | 37.0 | 42.0 | 30.5 | 125.0 | 142.5 | 27.0 | 180 | 300 |
